Since Umbraco v10 ships with SQLite and no more SQLCE I figured it would be a good idea upgrade my old "compare post" about SQL Server vs SQLCE.

There is a big difference between the databases in that the data types are very different but I was surprised to see that SQLite supports many types of queries that SQL CE did not. The data types in SQLite is basically:

  • NULL
  • INTEGER
  • REAL
  • TEXT
  • BLOB

This will be a "work in progress" blog post about the differences between SQL Server and SQLite and I will keep updating it when I find new cases.

Description

Query-example

SQL Serv.

SQLCE

Regular SELECT

SELECT * FROM umbracoNode

x

x

SELECT with Subquery in select-statement

SELECT id,
(SELECT COUNT(pk) from cmsDictionary) as Test
FROM umbracoNode

x

x

SELECT with Subquery in WHERE-statement

SELECT id, [text]
FROM umbracoNode
WHERE Id IN (SELECT nodeId from umbracoContentVersion)

x

x

SELECT with Subquery (scalar1) in WHERE


SELECT id, [text]
FROM umbracoNode
WHERE Id = (SELECT TOP 1 nodeId from umbracoContentVersion)

SQLite: WHERE Id = (SELECT nodeId from umbracoContentVersion LIMIT 1)

x

x5

SELECT with Inner Join

SELECT n.id, n.[text]
FROM umbracoNode n
INNER JOIN cmsDataType d ON d.nodeId = n.id

x

x

SELECT with STUFF-function

SELECT id,[text], STUFF([text],1,1, '')
FROM umbracoNode

x



SELECT TOP

SELECT TOP 5 * FROM cmsContentType

SELECT * FROM cmsContentType LIMIT 5

x

x5

SELECT with “FOR XML PATH”.
Will format as a scalar XML-payload

SELECT TOP 10 id,[text]
FROM umbracoNode
ORDER By [text]
FOR XML Path('node')

x



Row_Number() / Paging with
SELECT with ROW_NUMBER()

SELECT id,[text],
ROW_NUMBER() OVER (ORDER BY [text]) AS RowNumber
FROM umbracoNode
ORDER By [text]

X

X

Paging with
SELECT WITH OFFSET AND FETCH 2

SELECT id,[text]
FROM umbracoNode
ORDER BY id
OFFSET 0 ROWS
FETCH NEXT 10 ROWS ONLY

X

X

SELECT DISTINCT-feature

SELECT DISTINCT Id from umbracoContentVersion ORDER BY Id

X

X

SELECT COUNT with DISTINCT3

SELECT COUNT(DISTINCT thumbnail) FROM cmsContentType

X

X

SELECT with LIKE in Where

SELECT *
FROM umbracoNode WHERE [text] LIKE '%st%'

X

X

SELECT with Subquery in FROM-statement.

SELECT count(contentId)
FROM (SELECT DISTINCT contentId FROM cmsContentVersion) cmsContentVersion

X

X

SELECT with LEFT OUTER JOIN

SELECT n.id, n.[text], d.text, d.preventCleanup FROM umbracoNode as n
LEFT OUTER JOIN umbracoContentVersion as d ON n.id = d.nodeId

X

X

Parameter Alias declared as string

SELECT id as 'foo' FROM umbracoNode

X

X

Parameter Alias declared inline

SELECT id as foo FROM umbracoNode

X

X

SELECT with INNER JOIN Subquery in FROM

SELECT * FROM cmsTemplate as t
INNER JOIN (SELECT templateId, count(id) as total
FROM umbracoDocumentVersion WHERE published = 1
GROUP by templateId) as dv ON dv.templateId = t.nodeId

X

X

CROSS APPLY

SELECT id,userName,ugr.Roles FROM umbracoUser u
CROSS APPLY (SELECT COUNT(ug.userId) as Roles FROM umbracoUser2UserGroup AS ug WHERE ug.userId = u.id) as ugr
ORDER BY ugr.Roles DESC

X



DATEPART

SELECT DATEPART(YEAR, createDate) AS [Year]
FROM umbracoNode

X



CAST4

SELECT CAST(id as text) textId FROM umbracoNode

X

X*

DATALENGTH6

SELECT DATALENGTH([text]) textId FROM umbracoNode

X

X*

UNION ALL

SELECT id,userLogin as [email] FROM umbracoUser
UNION ALL
SELECT nodeId as id,email FROM cmsMember

X

X

CONVERT

SELECT CONVERT(nvarchar(50), uniqueId) as data3 FROM umbracoNode

X





....

1. A scalar query is a query that returns one row consisting of one column.
2. Works on SQL Server 2012+, older versions need the ROW_NUMBER()
3. Another version of the query with a join in the FROM-caluse works on SQL CE: SELECT COUNT(thumbs.total) as Total FROM (SELECT DISTINCT thumbnail as total FROM cmsContentType) as thumbs
4. Since the column data types are not the same (SQL Server has nvarchar, varchar while SQLite uses TEXT) this needs to be handled.
5. SELECT TOP is not supported in SQLite. But if the subquery was SELECT nodeId from umbracoContentVersion LIMIT 1 it would work.
6. SQLite calls this function length, used like so: length([columnName])





This blog post will explain how this works in Umbraco Forms 8.4.4. Database tables will most likely change between versions so keep this in mind - one might have to adjust the SQL-scripts depending on the Umbraco Forms-version.

Some basics

Before diving into details we need to be on the same page when it comes to the different building blocks in Umbraco Forms.

Forms

A Form is an actual Form, with all its fields, configured in the backoffice. Umbraco Forms stores the actual Forms as json-files on disk (\App_Data\UmbracoForms\Data\forms).

Field

A Form is built up by adding Fields to the form, giving them a name, alias and choosing a Form Field Type.

Entry

An entry is what gets stored when a visitor/user posts a Form. One can browse these Entries by expanding a form and clicking on "Entries". Each entry is stored together with all the values for the different Fields in the Form.



Database tables

Here is a brief overview of the data tables used by Umbraco Forms.

Entries and Fields

UFRecords

A UFRecord in the database is the same as one Entry in the UI. Each posted form will generate one UFRecord. This table contains information like when the Entry was created, on which page and from what IP.

UFRecordFields

This table "connects" each Field in the Form with the Entry. If the form has 5 fields, there should be 5 rows in this table for each Entry/Record.

Database tables

All these tables are used to store data based on the data-type, they have a id and key-column and a column for the value (base on the data type).

UFRecordDataString

UFRecordDataLongString

UFRecordDataInteger

UFRecordDataBit

UFRecordDataDateTime



Security

UFUserSecurity

Stores security settings related to specific Backoffice Users

UFUserFormSecurity

Stores security settings related to specific Forms



Delete data with SQL-script

To be able to delete an Entry we need to remove all related data in the UFRecordDataXXX-tables, the UFRecordFields and the UFRecord it self.

Here is a SQL-statement to remove Entries from Umbraco Forms, set the @formKey to only remove entries for specific Form, or use an empty string as @formKey to remove all Entries.

-- Use this to delete entries for a single form
DECLARE @formKey nvarchar(MAX) = 'f8274271-239c-4564-9f5e-0629bb02ca01';

-- Use this to delete entries for all forms
--DECLARE @formKey nvarchar(MAX) = '';

DECLARE @formRecordIds TABLE
(
   recordId int
);

DECLARE @fieldKeys TABLE
(
   fieldKey uniqueidentifier
);


IF @formKey = ''
	BEGIN
		INSERT INTO @formRecordIds SELECT [id] FROM [UFRecords]
	END
ELSE
	BEGIN
		INSERT INTO @formRecordIds SELECT [id] FROM [UFRecords] WHERE [Form] = @formKey
	END

-- Populate temp-table with a record-ids for the given form. Should match the number if the Umbraco Forms-dashboard

SELECT * FROM @formRecordIds

-- Populate the fieldKeys with all Field keys for any of the Records for the Form
INSERT INTO @fieldKeys SELECT [key] FROM [UFRecordFields] WHERE [Record] IN (SELECT recordId FROM @formRecordIds)
SELECT * FROM @fieldKeys



-- Delete all UFRecordDataXXX rows for any of the Fields in any of the Records
DELETE FROM UFRecordDataBit WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)
DELETE FROM UFRecordDataDateTime WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)
DELETE FROM UFRecordDataInteger WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)
DELETE FROM UFRecordDataLongString WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)
DELETE FROM UFRecordDataString WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)

-- Delete the Fields
DELETE FROM UFRecordFields WHERE [key] IN (SELECT fieldKey FROM @fieldKeys)

-- Delete the Records
DELETE FROM UFRecords WHERE id IN (SELECT recordId FROM @formRecordIds)





While working with ASP.NET Framework we sometimes need to get the physical path to a folder on the filesystem. The most common way to do this is using Server.MapPath("~/relative-folder"). I've researched best practices around this several times just to forget the details a couple of months later so in this post I'll outline my findings are share some of my own best practices.

So when building a web app there is mainly two "contexts" in which I need to get file system information, in my actual application code and in some of my unit tests. Most of the time I strive to mock out IO from my unit tests but in some scenarios, I also need to perform actual testing with the filesystem to be more confident that my tests are not giving me false positives.

Physical file paths in web applications

The "goto" standard back in the days was to always use HttpContext.Current.Server.MapPath() which would "translate" a relative path into a full file system path. BUT. This object is request-bound, meaning that it will only exist inside the context of a web request. If we run inside a background job with something like Hangfire or Quartz this object will not exist. That's why I always recommend using HostingEnvironment.MapPath(path) that will work in both request-context and in background jobs.

I also wanted to know if and how these might differ from one another so I created this table to see how Server.MapPath() behaves.

Code Returns
HttpContext.Current.Server.MapPath("") D:\Dev\TestApp
HttpContext.Current.Server.MapPath("/") D:\Dev\TestApp\
HttpContext.Current.Server.MapPath("~/") D:\Dev\TestApp\
HttpContext.Current.Server.MapPath("App_Plugins") D:\Dev\TestApp\App_Plugins
HttpContext.Current.Server.MapPath("/App_Plugins") D:\Dev\TestApp\App_Plugins
HttpContext.Current.Server.MapPath("~/App_Plugins") D:\Dev\TestApp\App_Plugins
HttpContext.Current.Server.MapPath("App_Plugins/") D:\Dev\TestApp\App_Plugins\
HttpContext.Current.Server.MapPath("/App_Plugins/") D:\Dev\TestApp\App_Plugins\
HttpContext.Current.Server.MapPath("~/App_Plugins/") D:\Dev\TestApp\App_Plugins\


Note that it does not matter if the relative path starts with "/", "~/", or just the folder name. Also, note that any trailing slash in the relative path will be reflected with a trailing slash in the file system path.

Doing the same thing with HostingEnvironment.MapPath() reveals some differences.

Code Returns
HostingEnvironment.MapPath("") Throws exception
HostingEnvironment.MapPath("/") D:\Dev\TestApp\
HostingEnvironment.MapPath("~/") D:\Dev\TestApp\
HostingEnvironment.MapPath("App_Plugins") Throws exception
HostingEnvironment.MapPath("/App_Plugins") D:\Dev\TestApp\App_Plugins
HostingEnvironment.MapPath("~/App_Plugins") D:\Dev\TestApp\App_Plugins
HostingEnvironment.MapPath("App_Plugins/") Throws exception
HostingEnvironment.MapPath("/App_Plugins/") D:\Dev\TestApp\App_Plugins\
HostingEnvironment.MapPath("~/App_Plugins/") D:\Dev\TestApp\App_Plugins\


Note here that the relative path must start with either "/" or "~/" otherwise, the method will throw.

Overall conclusions and recommendations

  • Always use HostingEnvironment.MapPath().
  • A folder path is indicated by the trailing slash, otherwise, it's a file path. Consider always using trailing slash for folders.
  • Always make sure that the relative path passed to MapPath() starts with a slash.
  • Be aware that the method will respect and include any trailing slash from the relative path into the physical path.
  • Avoid using things like AppDomain.CurrentDomain.BaseDirectory and build paths based on this as any virtual directories configured in IIS will not be respected with this approach.



Physical Paths in unit tests

This one is a little harder as we want our unit tests to be "self-contained" and not be dependent on any magic path on the developer's filesystem or a build server. Inside a unit test or any .NET app, you can always find the path to the executing program with AppDomain.CurrentDomain.BaseDirectory, in the case of a unit test this would return something like d:\Dev\TestApp\My.UnitTest\Bin\Debug. One might be tempted to traverse the path with ..\..\ to get to the project root but this only works if the folders created have this exact nomenclature. I would argue that there is a better way:

Create a folder called "MockFileSystem" inside your test project, this will act as the "root" of your application similar to what you would get from HostingEnvironment.MapPath("/"). Inside this folder, we can replicate the relevant files and store them inside our test project. It's important that we set the "Build action" for each item to "Content" and choose the "Copy if newer" option. This way the folder structure and files will be copied to the application´s root folder.

Have your application code depend on an abstraction of the MapPath()-method, in my case, this is an interface like this:

internal interface IFileSystemHelper
{
    string MapPath(string path);
}

​The implementation inside the web project would look like this:

internal sealed class FileSystemHelper : IFileSystemHelper
{
    public string MapPath(string path)
    {
        return HostingEnvironment.MapPath(path);
    }
}

And in my unit test project:

internal class MockFileSystemHelper : IFileSystemHelper
{
    public string MapPath(string path)
    {
        string baseDir = AppDomain.CurrentDomain.BaseDirectory + "MockFileSystem\\";

        path = path.TrimStart('~').Replace("/", "\\").TrimStart('\\');

        var full = Path.Combine(baseDir, path);

        return full;
    }
}


To avoid the "issue" with some relative folders having trailing slashes and some not we could have our implementations strip any trailing slash from the returned path to be sure that we always get a full path without any trailing slash. Something like this:

public string MapPath(string path)
{
    return HostingEnvironment.MapPath(path).TrimEnd('\\');
}





I was working on a ASP.NET-project the other day where we use a runtime cache (aka. application cache) that lives for the duration of the application lifetime. We use this to store some frequently used data and we update the cache when something changes.

The cache implementation is not state of the art and I figured I’ll share some learnings and pitfalls that I’ve fallen into over the years.

Mutable objects in the runtime cache

First of all: An mutable object, in contrast to an immutable object, is an object that can change it's state (aka properties on the object can change value without having to create a new object). Since an immutable object can't alter its state, we need to create a new instance of the object if we need to change any values. In .NET a standard class with get/set properties is mutable while DateTime, TimeSpan, and many others are immutable.

Years ago one of the biggest gotcha for me with using the MemoryCache in .NET is that it will actually store objects. Not serialized objects but real objects in memory and only pass the reference to any consumer.

This is of course great for performance, but it also means that one has to be very careful about how these objects are used. We could deep clone the object when fetching it from the cache to avoid many of the issues I’m going to point out here but in our case, we used the “vanilla memory cache” in .NET.

Since the objects are mutable, we can easily change the state, ie. change a property or add an item to a list – we just need to remember that the next time this object is accessed the new values will be there, and the old values are gone.


Updating values

Have a look at this code sample:

public class SomeService {

    public bool UpdateCustomer(CustomerViewModel vm)
    {
        // Getting the value from the CustomerService, which is wrapped in a
        // caching-decorator that uses the .NET MemoryCache.
        var customer = _customerService.GetCustomer(vm.CustomerId);

        customer.Name = vm.Name;
        customer.City = vm.City;
        customer.MaxOrderAmount = vm.MaxOrderAmount;

        var saveResult = _customerService.Save(customer);

        if(saveResult.HasValidationErrors)
            return ValidationError(saveResult);

        return Success();

    }
}

As you can see, we’re applying the changes from the view model into the Customer model and then saving it with the CustomerService which will validate the Customer before saving it. Let’s say that there is a validation error, the service will set HasValidationErrors to true and we’ll return the issues to the view.

BUT! This code contains a nasty bug. Since the GetCustomer()-method returns an object from the cache, the changes we make to the object (setting the values from the view model) will be persisted in the cache no matter if the validation is successful or not. This is all very logical and makes sense but it’s a big “gotcha” in terms of how caching works.

Another thing that has happened to me over the years: I was reading an object from the cache that had related entities (think customers with a List<Order>). I wanted to pass a Customer together with only paid orders to another service so I modified the order-property on the Customer like so:

customer.Orders = customer.Orders.Where(x=>x.Paid == true).ToList();

This felt great and the service that I called could use the customer-object from the cache. The only problem is that the underlying collection of orders is modified and the next time I read the Customer from the cache only the paid orders will be in the collection.

Threading and runtime cache

Most of the time the in-memory runtime cache would be shared inside the application, since I’m mostly doing ASP.NET this would be all threads used by the webserver to process requests.

Here we need to keep in mind that while one thread might be reading the cache, getting a reference to an object to read it – another thread might be in the processing of updating values on the same object, it might even be in the middle of this processes and depending on implementation the object might be in an invalid state (one property has been updated but not the other) causing errors on the read-side since the values do not make sense.

Solutions?

Going forward I can see a couple of things that would make it harder to “do it wrong”.

  • Always use un-cached business objects when modifying state. (ie. the method above should not read from the cache). This way we can safely apply changes to mutable objects and validate like in the sample above.
  • Cache a “read-only”-representation of the underlying business object. This representation could be a CustomerReadOnly-class with private setters for all the properties. This way the consuming code can’t change the state by mistake.
  • Use C# 9 record types, they are immutable so it's impossible to change the state of the cached object. If changes are needed on "the read side" a new instance of the record would have to be created - which will not impact the cached object. This way, any "implicit" changes to the cache are impossible.

There is a lot more to this subject but I figured I’ll post this as a starting point.

Ever since I've started using JetBrains Rider I've become a huge fan of the IDE, if you have ever used Resharper for Visual Studio - Rider is Resharper - but fast =D

Rider supports Javascript/TypeScript debugging with Chrome. Using this we can set breakpoints in our code and have the Rider show variables etc. when the client app executes. There are several ways to go this but we mostly develop on a local IIS instance which means that our dev-environments most of the time have a custom domain - ie enkelmedia.se.local or something like this.

Configure JS/TS build

Before we configure Rider we need to make sure that our Javascript code can be debugged. Most of the time we would use some tools to transpile, minify and process the source code into a Javascript bundle. For the debugger to work we must make sure to include the source maps in our build. When using Webpack this is configured like this:

module.exports = {
    ...
    devtool: 'inline-source-map',
    ...
}

One way to double-check that this works is to put a "console.log" in one of the typescript files and make sure that the console output in Chrome shows the .ts file as the source of the console.log-statement.

Configure Rider

We need to set up a custom "Debug Configuration" for the Javascript/Typescript debugging. Go to "Run | Edit Configurations" and add a new "Javascript Debug"-configuration, in the "URL" field paste the URL to the application we want to debug ie. "http://enkelmedia.se.local".

To use this configuration, in the upper right corner choose the configuration from the dropdown and click the debug-icon (the bug). This will start a fresh instance of Google Chrome with the debugger attached.

More information and documentation:

https://www.jetbrains.com/help/rider/Configuring_JavaScript_Debugger.html

Today I held my talk on the yearly Umbraco Conference CodeGarden, due to the pandemic this year’s conference was all digital which turned out to be really good. I would like to thank everyone involved in making this a great experience it’s almost as great as the IRL experience.

So my talk was on the subject “10 things every Umbraco-developer should know” and I’ll try to create a short summary here. If you want to go into details, go ahead and download the slides.


1. Properties

A “Document Type” in Umbraco has “Properties”, these uses “Data Types” and a “Data Type” is a “Property Editor” with optional configuration.
A “Property Editor” can be used on any number of “Data Types” and a “Data Type” can be used on any number of “Document Types”.

One can alter the behavior of the “Property Editor” using “Data Type”-configuration.

2. Property Value Converts

A Property Value Converter is a class that knows how to convert the stored value into something useful for the front end.
If we use the “Multi Node Tree Picker”, the data stored in the database would be like this:

umb://document/ee82cba3a0e740639ae13026a4f72a3d,umb://document/9c1c3a2c72b045e2a3c33c068164a018,umb://document/3cce2545e3ac44ecbf55a52cc5965db3

The “Property Value Converter” knows how to take this data and create a list of IPublishedContent-items from the cache to use on the front end.

When you build your own Property Editors, don’t forget to create a Property Value Converter.

Also, do try Callum Whyte’s package Super Value Converters.

3. Database vs Cache

When you “Save” content in Umbraco it’s is saved to the database, when you “Save and Publish” it’s stored in the database and also Published to the Cache.

You should make sure that the front end of your website only uses the Cache to present data.

Do: Use IPublishedContent, UmbracoHelper, and UmbracoContext.ContentCache

Avoid: Using IContent, ContentService, MediaService, and other services.

Custom services, repositories, and background threads. In you’re your custom code the best approach to fetch data from the cache is to inject the IUmbracoContextFactory into your service.

Example:

public class BlogService : IBlogService
    {
        private readonly IUmbracoContextFactory _contextFactory;
        private readonly IScopeProvider _scopeProvider;

        public BlogService(
            IUmbracoContextFactory contextFactory,
            IScopeProvider scopeProvider)
        {
            _contextFactory = contextFactory;
            _scopeProvider = scopeProvider;
        }

        public List<BlogPost> GetPosts(string category)
        {
            using (var scope = _scopeProvider.CreateScope(autoComplete:true))
            {
                using (var ctx = _contextFactory.EnsureUmbracoContext())
                {
                    var blogContainer = ctx.UmbracoContext.ContentCache.GetById(1123);

                    var posts = blogContainer.Children.ToList();

                    return BlogPostMapper.Map(posts);
                }
            }
        }

    }



More details on why what is happening here can be found in this thread on our.Umbraco.com-forum.

 4. Content Versions

All content in Umbraco is versioned. Every time you Save or Publish something in Umbraco a new version is created.

On the "Info"-Content App on a Content-node you can see old versions and Rollback to them if you need to.

You should avoid storing data that changes a lot (volatile data) as content in Umbraco. Ie. if you are running an import every 30 minutes, this creates 48 versions per day, in a year this is 17 520 versions.

Solution? Use the UnVersion-package that automatically cleans old versions.

5. Modes Builder

Provides strongly-typed models for the front end of your Umbraco website.

Before Models builder, we had to get a property like this: @Model.GetPropertyValue("myProperty"), but with Models Builder we can go @Model.MyProperty to get the value in a strongly typed way.

In V8, Models Builder is configured in web.config, and we tend to configure it like this:



<add key="Umbraco.ModelsBuilder.Enable" value="true" />
<add key="Umbraco.ModelsBuilder.ModelsMode" value="LiveAppData" />
<add key="Umbraco.ModelsBuilder.ModelsNamespace" value="MySite.Web.Models.Cms" />
<add key="Umbraco.ModelsBuilder.ModelsDirectory" value="~/../MySite.Web/Models/Cms" />
<add key="Umbraco.ModelsBuilder.AcceptUnsafeModelsDirectory" value="true" />



The model-classes generated by Models Builder is just a wrapper around "IPublishedContent", you can create a new instance of a typed model and pass the IPublishedContent:

IPublishedContent content = Umbraco.Content(4211);
var blogModel = new BlogPage(conten);
var title = blogModel.PageTitle;

And since Models Builder makes the Umbraco cache return actual instances of the model classes you could just cast the IPublishedContent:

IPublishedContent content = Umbraco.Content(4211);
var blogModel = content as BlogPage;
var title = blogModel.PageTitle;

When using Composition, Models Builder will create C#-interfaces for these, and you can check if an instance implements this interface (hence is using the Composition):

IPublishedContent content = Umbraco.Content(4211);
string heroImageUrl = null;
if (content is IHero hero)
{
    heroImageUrl = hero.HeroImage.Url;
}



6. Debugging

Use the Log Viewer in the Settings section to view the logs and entries created by the website.

Also, these files can be found on disc in /App_Data/Logs

Use a tool like Compact Log Viewer to watch the logs outside of the backoffice.

Also, you can write to the log from your custom code:

using Umbraco.Core.Logging;

public class MyThing : IMyThing
{
    private readonly ILogger _logger;

    public MyThing(ILogger logger)
    {
        _logger = logger;
    }

    public void DoSomething(string value)
    {
        _logger.Info<MyThing>($"My thing executed DoSomething()");

    }
}

You can also use measure the performance of certain blocks in your code using the IProfilingLogger:

using Umbraco.Core.Logging;

public class MyThing : IMyThing
{

    private readonly IProfilingLogger _profLog;

    public MyThing(IProfilingLogger profLog)
    {
        _profLog = profLog;
    }

    public void DoSomething(string value)
    {
        using (_profLog.TraceDuration<MyThing>("Starting work","Done with work"))
        {
            Thread.Sleep(250);
        }
    }
}



 7. Lucene / Examine

Examine is the built-in "Search Engine" in Umbraco, it used Lucene.NET to index Content, Media, and Members.

It provides fast free text search and is great to perform filtering on large data sets, ie. a product or article filter.

Some take away's:

  • The Umbraco 8-cache (NuCache) is a lot faster than the V7-cache
  • Prefer NuCache if you're working with less than 500 content nodes and few filtering options
  • Use Examine/Lucene to filter larger data sets with many filtering options
  • Do test what's best for you

A more detailed presentation around this can be found here.

8. Inversion of Control / Dependency Injection

The concept of injecting dependencies into your classes is a good practice and it becomes more important with Umbraco 9 that runs in .NET 5 where DI is a first-class citizen.

LifeTimes in Umbraco 8 (LightInject)

  • Transient: A new instance every time
  • Singleton: Same instance for the application lifetime
  • Scope: New instance for every "Scope" in the DI-container. In Umbraco, this is for every web request.
  • Request: New instance for every request to the container. This is similar to Transient. Avoid this.

9.  NPoco

The "Micro ORM" used by Umbraco Core, used to read, update and delete data in the database. You can think of this as a "Lightweight and fast Entity Framework". You are free to use EF in your own code if you want to but you can also use NPoco:

public class MovieRepository : IMovieRepository
{
    private readonly IScopeProvider _scopeProvider;

    public MovieRepository(IScopeProvider scopeProvider)
    {
        _scopeProvider = scopeProvider;
    }

    public bool Save(Movie movie)
    {
        return true;
    }

    public List<Movie> GetByYear(int year)
    {
        using (var scope = _scopeProvider.CreateScope(autoComplete:true))
        {
            var dtos = scope.Database.Fetch<MovieDto>(
                scope.SqlContext.Sql().SelectAll()
                    .From<MovieDto>()
                    .Where<MovieDto>(x=>x.Year == year));

            return MovieMapper.Map(dtos);

        }
    }
}

The Scope's created but IScopeProvider can be nested, but: Don't forget to "Complete" your scopes.

10. AngularJS hacks for the backoffice.

You can use AngularJS's $httpProvider.interceptors to intercept requests/responses to/from the Umbraco backoffice APIs.

This is useful if you would like to alter the response coming back from the API in any way. One example is to remove the default "Consent"-field that is included when creating a new form in Umbraco Forms.

angular.module('umbraco.services').config([
   '$httpProvider', function ($httpProvider) {
       $httpProvider.interceptors.push(['$q','$injector', function ($q, $injector) {
           return {

               'response': function(response) {

                   // Overrides the response from the API-endpoint that created the Forms,
                   // The controller is hardcoded to always append the "data consent"-field as the last field in the collection
                   // So by running pop() on the collection.

                   // Does the returned content match the endpoint for GetScaffoldWithWorkflows?
                   if (response.config.url.indexOf('backoffice/UmbracoForms/Form/GetScaffoldWithWorkflows?template=') > -1) {
                       response.data.pages[0].fieldSets[0].containers[0].fields.pop();
                   }

                   return response;
               }

           };
       }]);

   }]);

You need to include this javascript in the backoffice using a package.manifest-file.

When starting upp a website on fresh install of IIS I sometimes get this error:

HTTP Error 500.19

There is not much information more than the error that says: The requested page cannot be accessed because the related configuration data for the page is invalid.

The first thing I check is the permission settings for the folders, after this one could just try to remove elements from web.config to figure out what inside web.config that is considered "invalid". Since I work a lot with Umbraco, MOST of the time the problem is the <rewrite>-element. Without the right components installed on server these elements will be unknown to IIS and considered invalid.

What do to?

If you have the <rewrite>-element with <rules> configured in web.config make sure that you have installed "URL Rewrite", this is my favorite method:

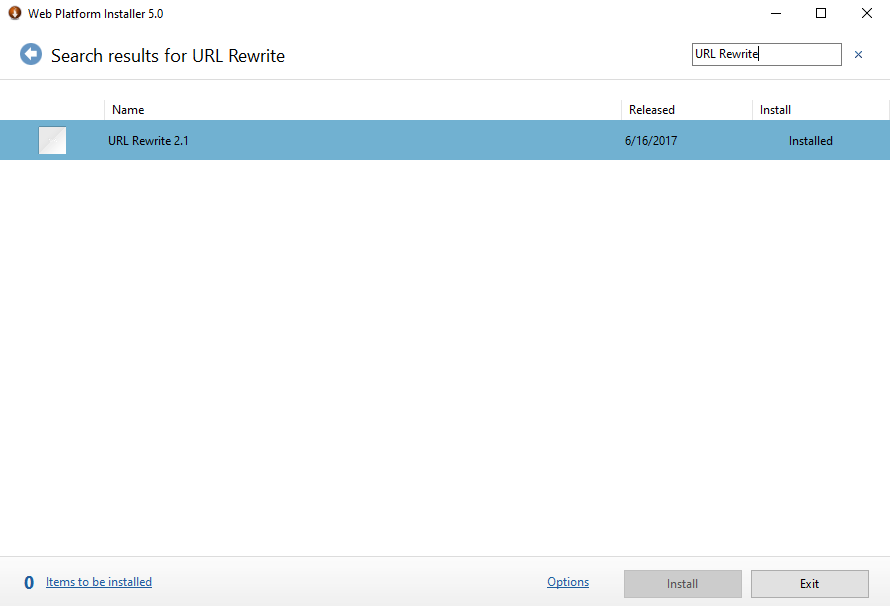

  • Download and install "Web Platform Installer" from Microsofts website.
  • Run Web Platform Installer, click on "Product" and search for "URL Rewrite".
  • Click on the "Add"-button in the Install-column and follow the instructions.



When running unit tests over "complex" data ie. an html, XML, or json-file it's sometimes good to keep this data in its own file and not in the C# code like this:

The example above is from one of our utility projects for Umbraco where we're parsing the grid to remove any empty p-tags from the end of a Rich Text Editor. To really know that this works and also keeps working we've created unit tests for different kinds of grid input.

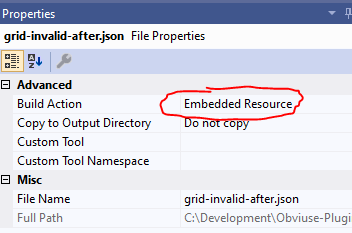

First off, we need to include the files in the project and then set there "Build Action" to "Embedded Resource", right-click on the file, and choose "Properties" to see this options pane:



After this we can read the content of the files like this:

var content = new AssemblyTestData<MyUnitTestClass>(".Files.").ReadString("test-data.json");

Here's the code for the AssemblyTestData-class:

// <summary>
/// Utility to read content of embedded assembly resources
/// </summary>
/// <typeparam name="T">The calling type, used to get the resource namespace</typeparam>
public class AssemblyTestData<T>
{
    private readonly string _additionalNameSpace;

    /// <summary>
    ///
    /// </summary>
    /// <param name="additionalNameSpace">If the files to read is in another namespace than the calling class, add this here ie ".Files</param>
    public AssemblyTestData(string additionalNameSpace = "")
    {
        _additionalNameSpace = additionalNameSpace;
    }

    public string ReadString(string filename)
    {
        var bytes = ReadBytes(filename);

        return Encoding.UTF8.GetString(bytes)
            .Trim(new char[]{'\uFEFF','\u200B'}); // Removes boom-chars

    }

    public byte[] ReadBytes(string filename)
    {
        var type = typeof(T);
        var assembly = type.Assembly;
        var stream = assembly.GetManifestResourceStream(type.Namespace + _additionalNameSpace + filename);

        using (var memoryStream = new MemoryStream())
        {
            stream.CopyTo(memoryStream);
            return memoryStream.ToArray();
        }
    }
}

Happy testing!



Umbraco CMS ships with the great MiniProfiler both with Umbraco 7 and 8.

I'm not going to repeat everything from the documentation but today when I wanted to see some profiling for a backoffice API-controller I'm working on I found that it's really easy to show the profiler logs by going to



https://mysite.com/mini-profiler-resources/results-index

I recently played around with Microsoft's new "Windows Terminal", a great new tool for working with different command-line tools in Windows.

I use the following setup:



My default setup for the Windows Terminal settings looks like this:

"defaults":
{

    // Put settings here that you want to apply to all profiles.
    "colorScheme": "One Half Dark", //"Tango Dark",
    "fontFace": "Cascadia Code PL",

    "useAcrylic" : true,
    "acrylicOpacity" : 0.9,

    "startingDirectory": "." //add this

},



 Also if you want the git-bash as one of the options on the dropdown for shells, just add this to the "list"-property in the Windows Terminal settings:

 {
    "guid" : "{14ad203f-52cc-4110-90d6-d96e0f41b64d}",
    "name" : "Git Bash",
    "historySize" : 9001,
    "commandline" : "C:/Program Files/Git/usr/bin/bash.exe --login",
    "icon" : "C:/Program Files/Git/mingw32/share/git/git-for-windows.ico",

    "useAcrylic" : true,
    "acrylicOpacity" : 0.9,

    "padding" : "0, 0, 0, 0",
    "snapOnInput" : true

}

Note: The path to git might be different, sometimes something like c:/program files (x86)/
